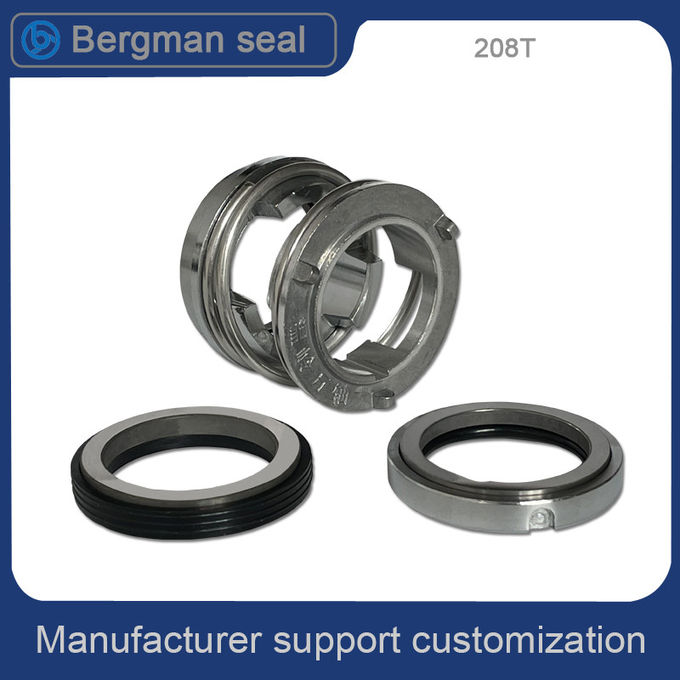

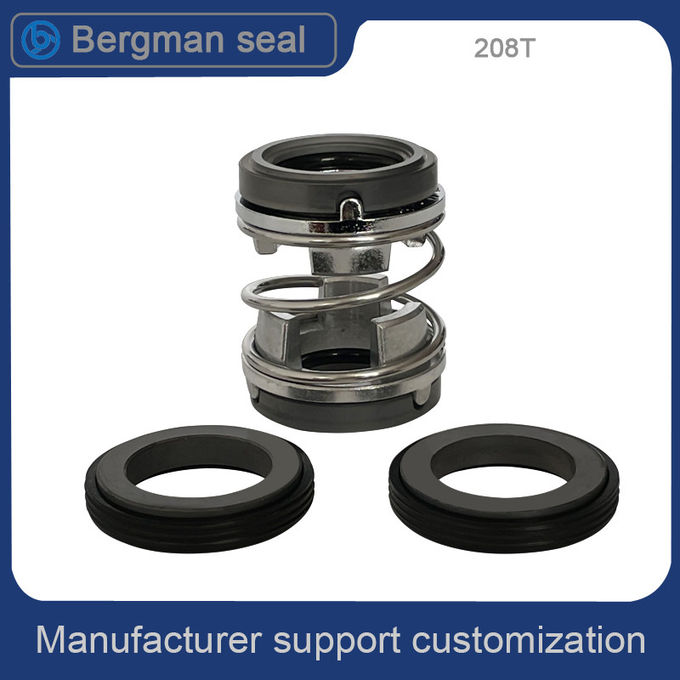

208T Water Pump Singe Spring Mechanical Seal 40mm Shaft Hole

Name: 208T Water Pump Singe Spring Mechanical Seal 40mm Shaft Hole
Brand: Bogeman
Price: 1 USD

China 208T Water Pump Singe Spring Mechanical Seal 40mm Shaft Hole wholesale

Brand Name : Bogeman

Model Number : 208T-17/20/25/30/35/40mm

Certification : ISO SGS

Place of Origin : Guangzhou, China

MOQ : 5/PCS

Price : US $ 5.8-58.8/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000/month

Delivery Time : 2/day

model : 208T

speciflcation : Shaft hole 17-40mm

material : CAR CER SSIC TC NBR

usage : unbalanced

traemark : Bergman

origin : Guangzhou, China

Contact Now

208T Water Pump Singe Spring Mechanical Seal 17 20 25 30 35 40mm Shaft Hole

Mechanical Seal Type 208T 17 20 25 30 35 40 Water Pump Seal Mechanical Seal

Mechanical Seal Type 208T-17 20 25 30 35 40mm Submersible Pump Sewage Pump Water Pump Seal Mechanical Seal New Material SSIC SSIC TC TC NBR Manufacturer Excellent Quality Patented Technology Durable Mass Spot Fast Delivery

Product Description

Singe Spring Mechanical Seals.
Operating Limits:

Pressure: ≤1.2MPa
Speed: ≤10 m/s
Temperature: -30ºC~+200ºC

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Ring(nbr/Epdm/)
Spring and Retainer(Sus304)

Model	d1(mm)	d7	l1	l3
208-10	10	21	30	5
208-12	12	23	30	5
208-14	14	26/28	38	6
208-16	16	28/30	38	5
208-18	18	33/35	38	5
208-20	20	35/36	40	5.5
208-25	25	40/41	48	8
208-30	30	45	51	8
208-35	35	50	51	8
208-40	40	58	58	9
208-45	45	63	58	9

Fixing and Applying Directions of Mechanical Seals

1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.

2. The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.

3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.

4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.

5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.

6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.

7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.

208T Water Pump Singe Spring Mechanical Seal 40mm Shaft Hole

We are a manufacturer. All seals have bulk inventory and can be shipped to you quickly. We promise to ship you in small quantities within 3 days.Advanced technology, excellence, replace original

1. Different models of mechanicals seals for a wide variety of Grundfos® pumps, among them: CR(N), NB, NK, CLM, LP, TP, etc. Available in diverse combinations of materials and different diameters: 12, 16, 22, 28, 33, etc. Also mechanical seals for Sarlin®. Division of waster pumps. Available in various materials: silicon-graphite carbide, silicon carbide-silicon carbide; combined with EPDM and FKM elastomers.

2. Mechanical seals for Fristam® pumps. Wide range of models and materials in the most standard diameters: 22,30 and 35 mm. Different assembly possibilities for the most well-known pump models: FP, FL and FT.

3. Broad range of mechanical seals compatible with Flygt® and Grindex® waste water pumps. These mechanical seals are characterized by their easy and fast installation, without having to make any modification to the pump. Manufactured in stainless steel and in solid tungsten carbide. Special tools are not necessary for their installation.

4. Mechanical seals for EMU® pumps. They get two static faces and one rotating face. We can supply the complete seal or spare faces.

5. Different designs of mechanical seals for Ebara® pumps, single and double seals in combinations carbide-silicon carbide and graphite-aluminium oxide.

6. Mechanical seals for all types of Calpeda® pumps: centrifugal pumps, multistage, submersible. Different models of mechanical seals in a wide range of materials.

7. Mechanical seals compatible for APV® pumps, among them: Puma, ZMA, ZMB, ZMD, ZMS, ZMH, ZMK. Rosista® and Pasilac®, W and W+. Some designs with wave spring like the special seals for APV Howard® pumps and Crepaco Clean Line®. All of them have been manufactured in materials suitable for working with fluids such as juices, milk and drinks in general.

8. Allweiler, Simple design of mechanical seals simple but with special measures for this type of pump.
